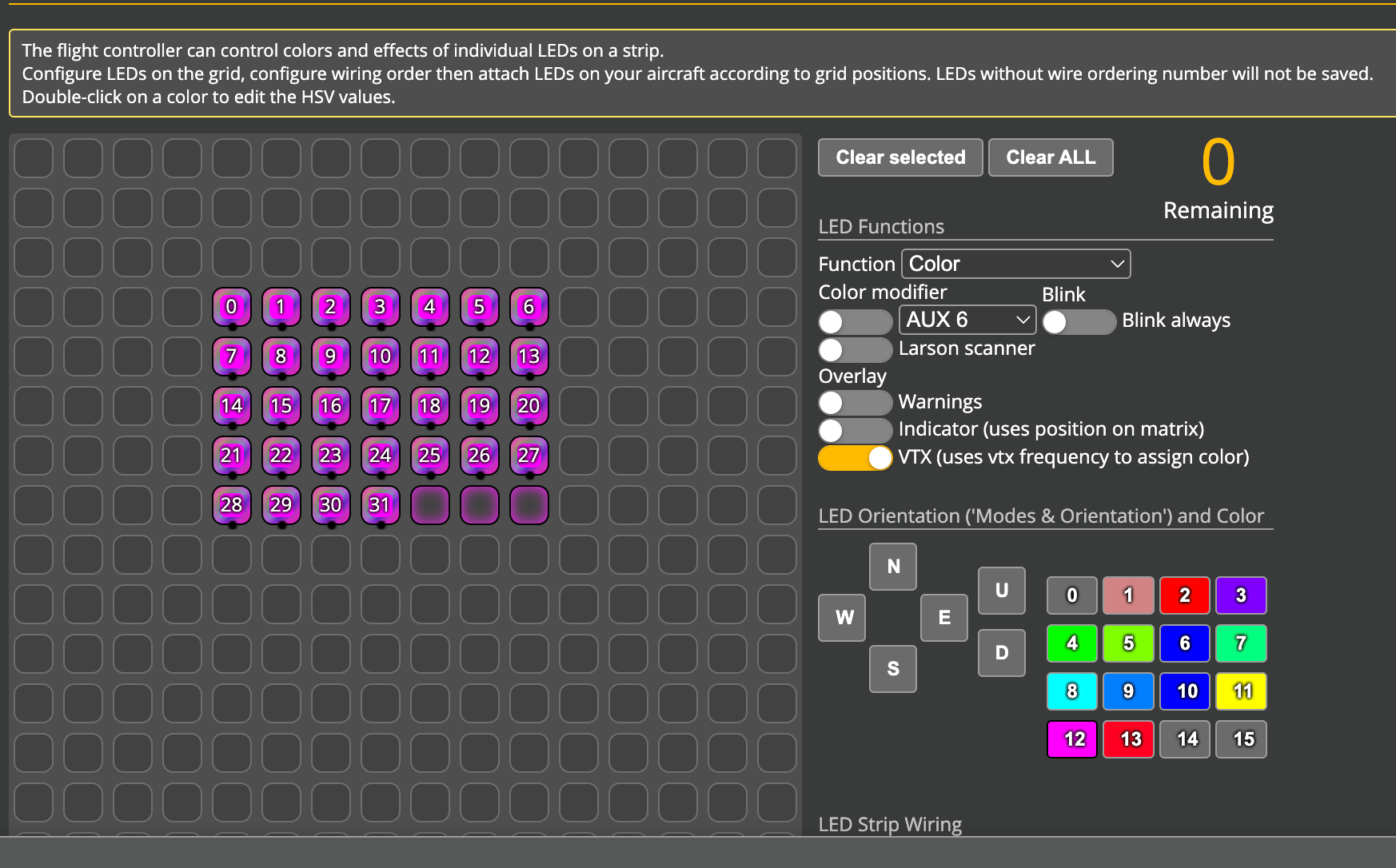

To setup LEDs to use colours base on VTX channel. Firstly st LEDs to have function color and the enable the VTX option and save.
Then use the follow CLI commands to set correct colors for rebels
| Channel | LED Colour |
|---|---|
| R1 | White |
| R2 | RED |
| F2 | GREEN |
| F4 | BLUE |
| R7/F8 | YELLOW |
| R8 | PINK |
color 0 0,0,0
color 1 0,160,210 #WHITE-MOD
color 2 0,0,255 #RED
color 3 270,0,255
color 4 120,0,255 #GREEN-MOD
color 5 90,0,255
color 6 240,0,255 #BLUE-MOD
color 7 150,0,255
color 8 180,0,255
color 9 210,0,255
color 10 240,0,255
color 11 60,0,255 #YELLOW-MOD
color 12 300,0,255
color 13 352,0,255 #PINK-MOD
color 14 0,0,0
color 15 0,0,0
save
